Guitars, Electric Guitars, US Guitars, US Ultra Luxe

General

• Series: American Ultra Luxe Vintage
• Orientation: Right-Hand
• Color: 3-Color Sunburst
• Country Of Origin: USA

Neck

• Neck Material: Maple
• Neck Finish: Satin Lacquer
• Neck Shape: Modern “D”

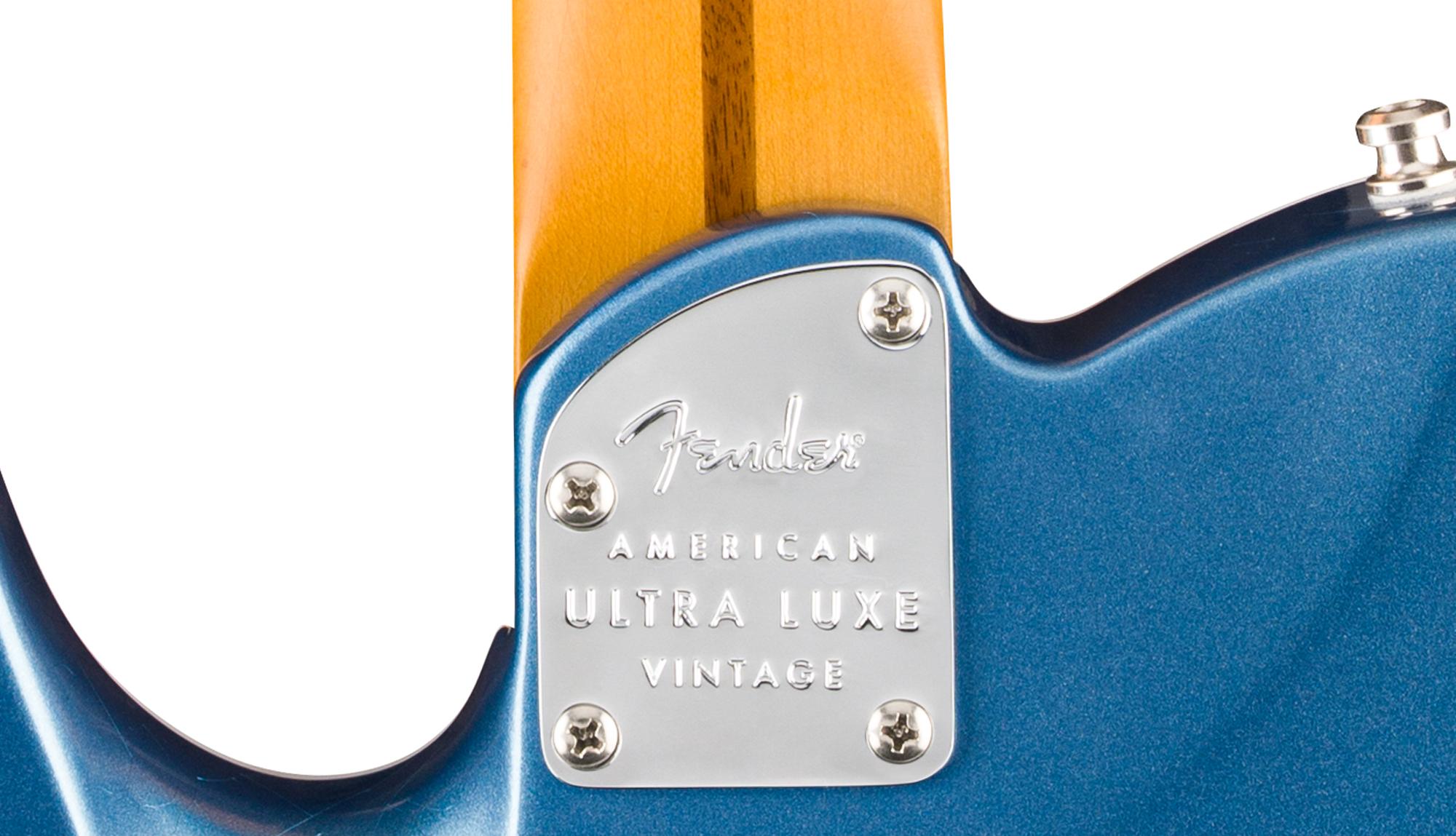

• Neck Construction: 4-Bolt Standard
• Fingerboard Radius: 10″ to 14″ Compound Radius (254 mm to 355.6 mm)
• Fingerboard Material: Rosewood
• Position Inlays: Clay Dot
• Side Dots: Luminlay®
• Number of Frets: 22
• String Nut: TUSQ™
• Nut Width: 685″ (42.8 mm)
• Nut Material: TUSQ™
• Fret Size: Medium Jumbo Stainless Steel
• Scale Length: 25.5″ (648 mm)

Body

• Body: Alder
• Body Finish: Heirloom™ Nitrocellulose Lacquer
• Body Shape: Telecaster®
• Body Binding: 1-Ply White
• Body Style: Solid Body
• Body Material: Alder

Hardware

• Bridge: 6-Saddle American Tele® with Chromed Brass Saddles
• Pickguard: 3-Ply Mint Green
• Pickup Covers: Neck: Chrome; Bridge: Black
• Control Knobs: Knurled Flat-Top
• Switch Tip: Barrel Style
• Hardware Finish: Nickel/Chrome
• Tuning Machines: Deluxe Cast/Sealed Locking
• Strings: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
• Strap Buttons: Locking

Electronics

• Bridge Pickup: Pure Vintage ’63 Single-Coil Tele®
• Neck Pickup: Pure Vintage ’63 Single-Coil Tele®
• Pickup Configuration: SS
• Controls: Master Volume (S-1™ Switch), Master Tone
• Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Special Electronics: S-1™ Switch Activates Series Wiring Option in Any Pickup Position (Bypasses Pickup Selector Switch)

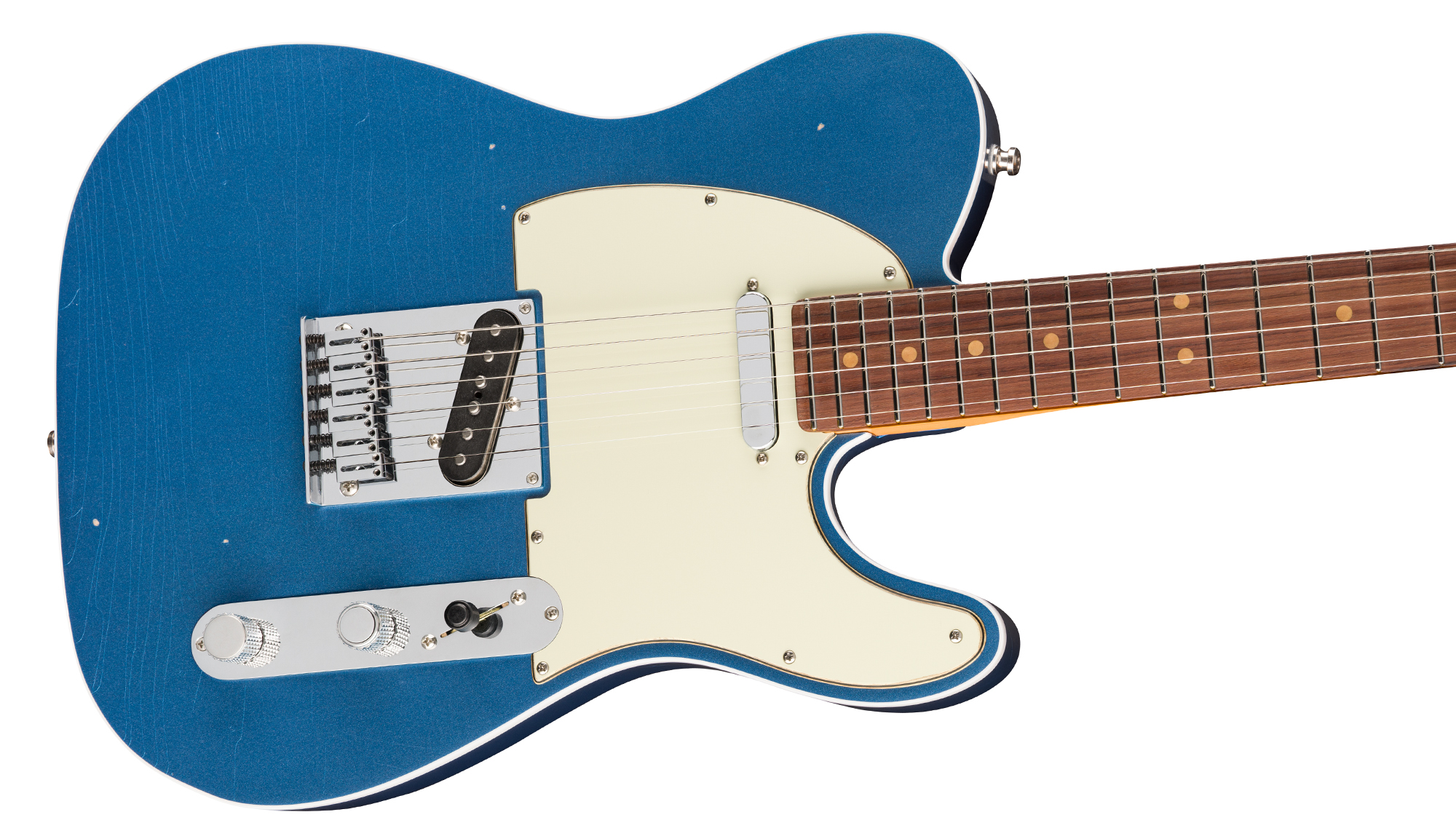

SELECT ALDER BODY WITH ULTRA CONTOURS AND HEIRLOOM™ LACQUER FINISH

Premium alder bodies provide the foundation for authentic Fender tone, offering exceptional resonance and character. The elegant ‘Ultra’ sculpted rear body contours merge player comfort with refined aesthetics, creating an instrument that’s as beautiful as it is functional. Channeling a 1960s Telecaster®, our Heirloom Lacquer finish reproduces the subtle patina and distinctive look of a treasured vintage instrument.

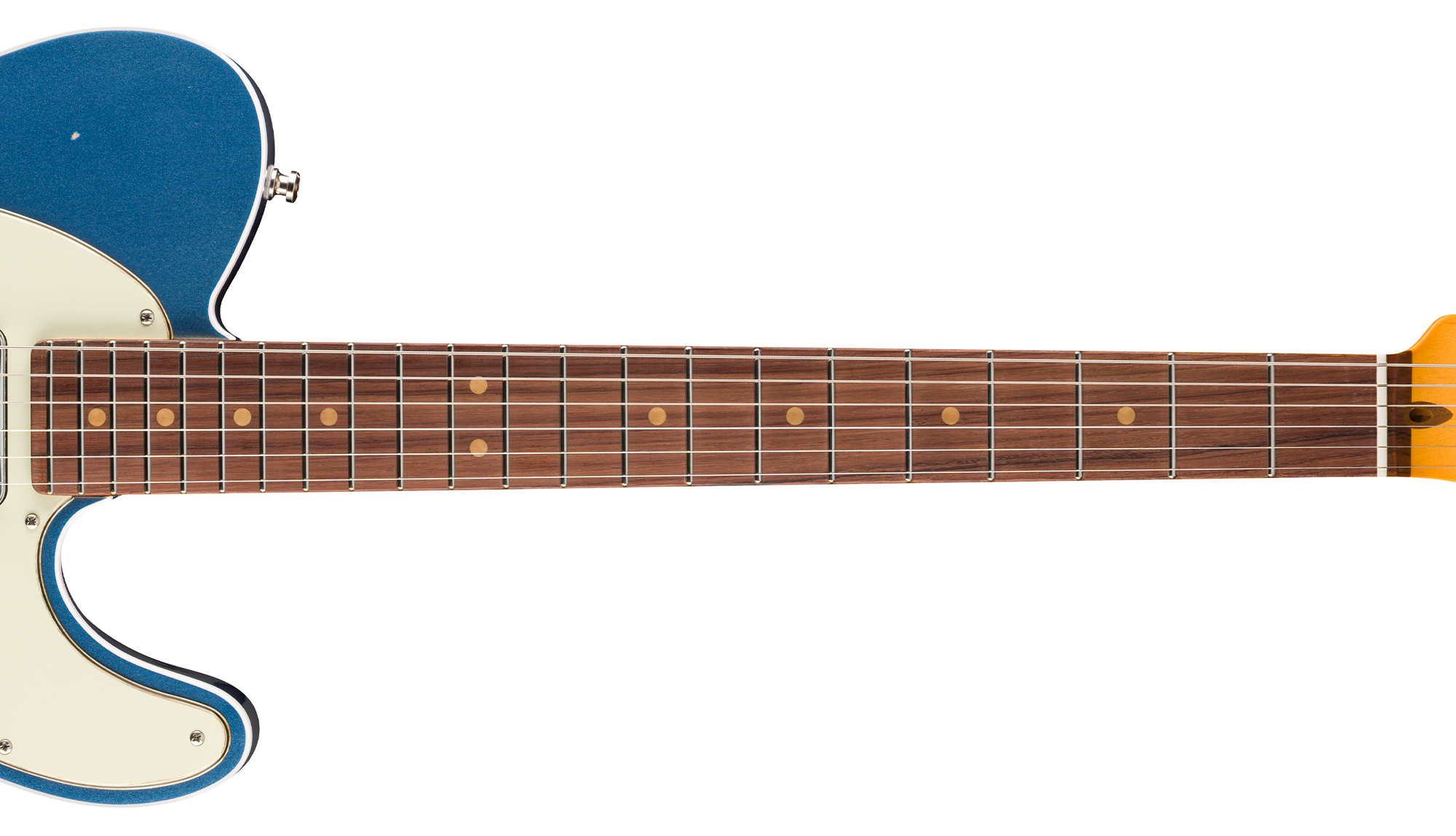

QUARTERSAWN MODERN “D” PROFILE NECK AND TAPERED NECK HEEL

Slim with wide shoulders, the “Modern D” neck profile works for any style of playing. Paired with an extra-strong quartersawn maple neck and tapered neck heel, this neck delivers unparalleled stability and access to the upper registers of the fingerboard.

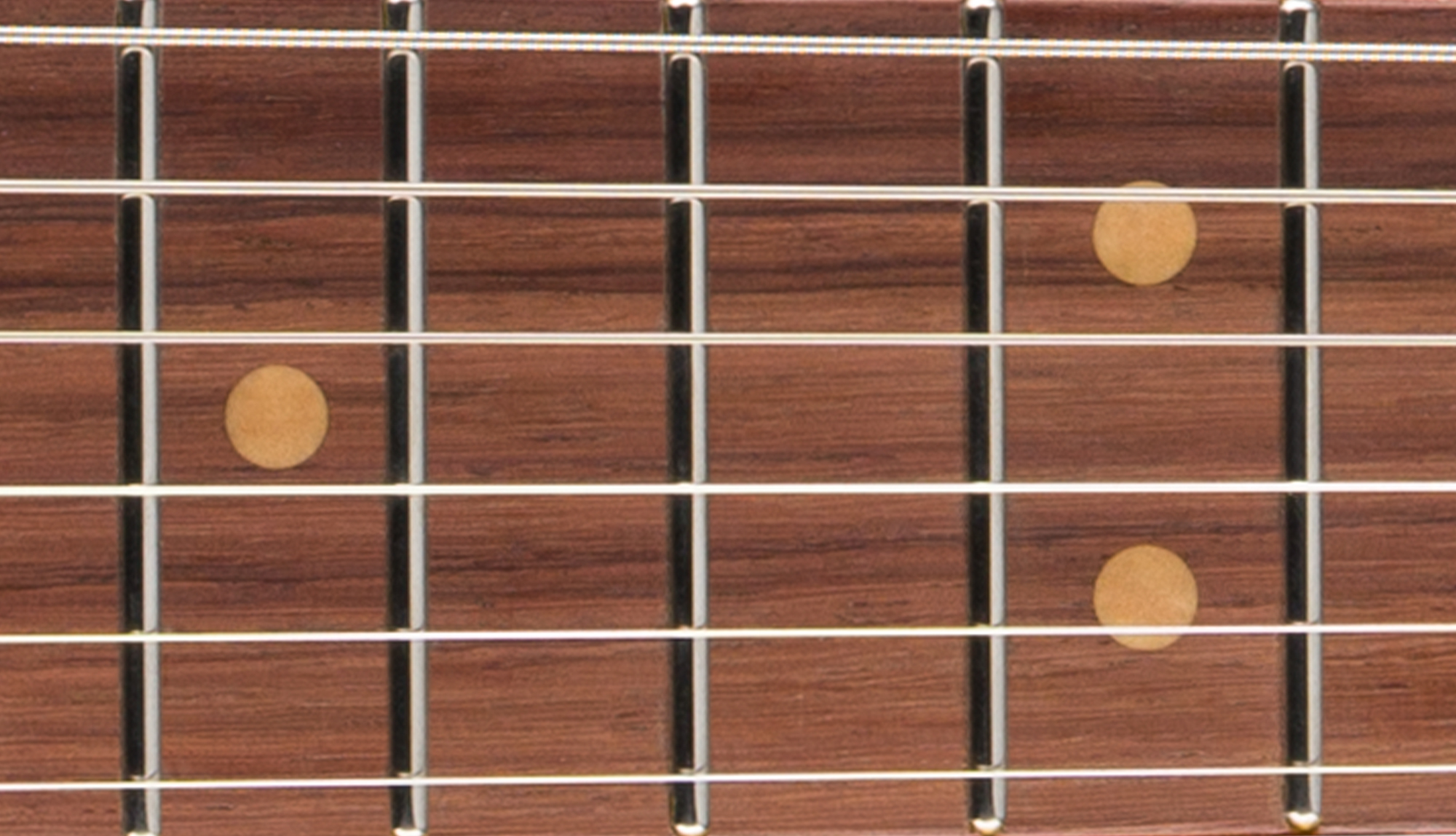

10”-14” COMPOUND RADIUS FINGERBOARD WITH ULTRA ROLLED EDGES AND LUMINLAY® SIDE DOTS

Built for speed, comfort and facility, the 10”-14” compound-radius fingerboard is rounded near the nut, becoming increasingly flatter as it nears the upper register. Luminlay glow-in-the-dark side dots provide exceptional visibility even on the darkest stages while “Ultra” rolled fingerboard edges and a silky, smooth “Ultra” satin finish make the neck effortless to play.

STAINLESS STEEL FRETS

Premium stainless steel frets deliver unmatched tone, durability and performance. These frets require minimal maintenance, resist corrosion, and maintain their mirror-like polish – ensuring consistent playability and lasting quality for years to come

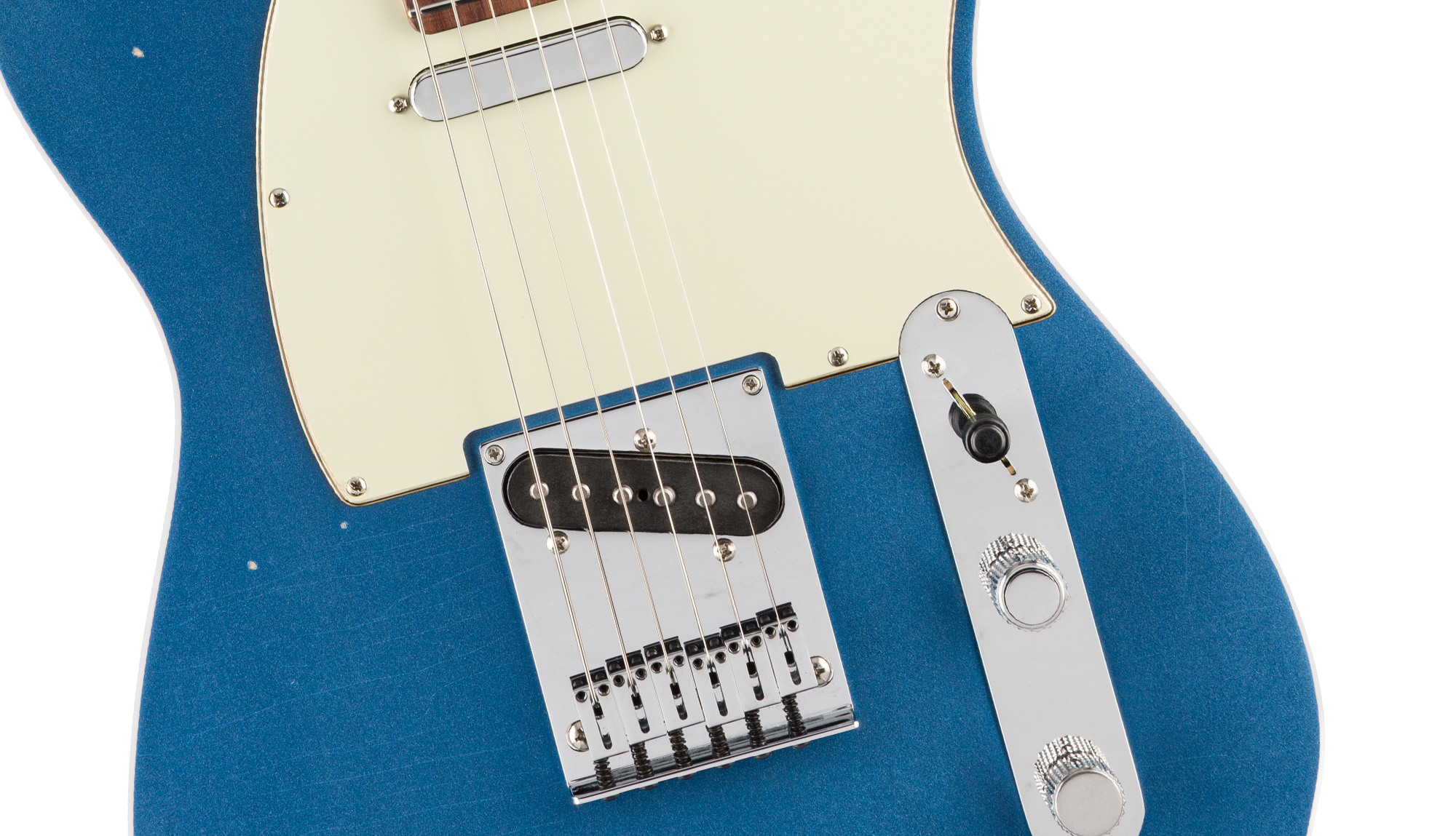

PURE VINTAGE ‘63 TELE® SINGLE-COIL PICKUPS, ADVANCED ELECTRONICS AND S-1™ SWITCHING

Specially voiced to reproduce the authentic sound and performance of individual model years, Pure Vintage pickups are constructed exactly like the pickups from Fender’s golden years. Materials include cloth-covered wire, fiber bobbins and alnico magnets. Our patented S-1™ switch selects between series or parallel wiring for added tonal range, while the treble bleed circuit maintains your highs at any volume.

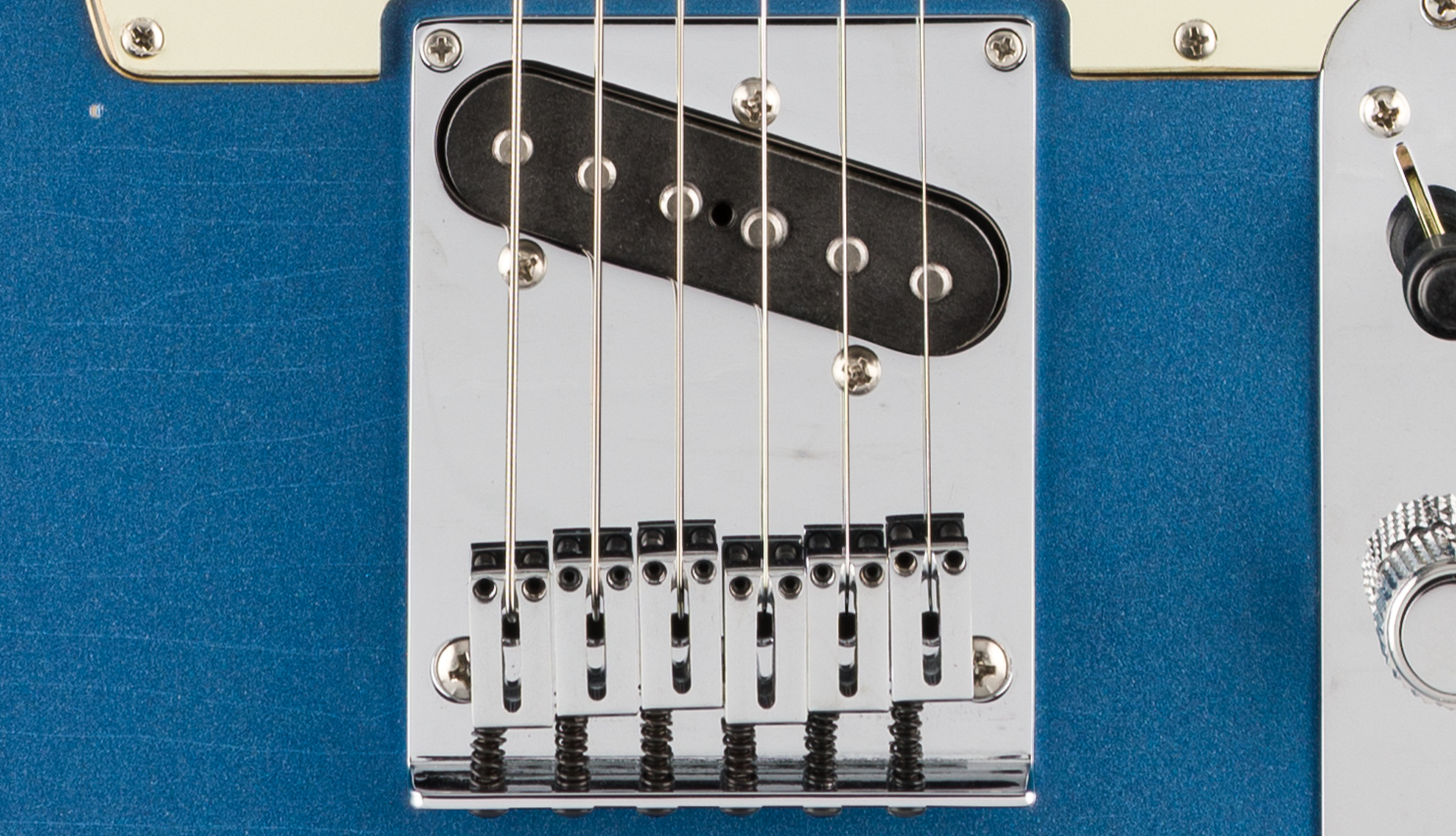

ULTRA TELE BRIDGE WITH POLISHED CHROME PLATED BRASS SADDLES

Featuring six polished chrome plated brass block saddles, the Ultra Tele® bridge delivers exceptional intonation accuracy and classic Telecaster® snap without compromising traditional tone. The precisely engineered saddles provide improved string-to-string balance and enhanced sustain while preserving that coveted brass-induced twang that defines the Telecaster® sound.
