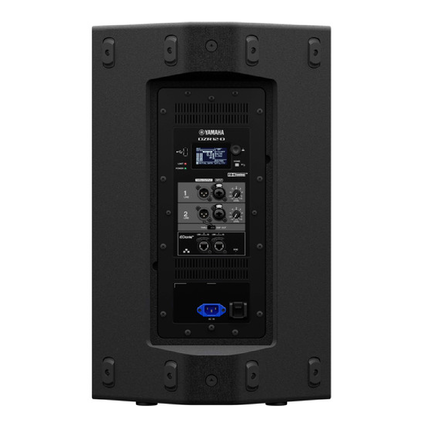

Yamaha DZR12-D Powered Speaker with Dante
  • Yamaha DZR12 Front 54989
  • a7de45d657152131abd61feb2160c549
SKU P13DZR12-D Categories , Tag

Yamaha DZR12-D Powered Speaker with Dante

₱226,380.00

In stock

Description

Built-in Dante capabilities

Integrating the DZR12-D with Yamaha consoles and other Dante devices is a breeze. The DZR12-D features a built-in 2-in/2-out Dante interface, along with sample rate conversion, allowing 48kHz device compatibility. Benefit from simplified patching with Yamaha’s CL/QL digital consoles from their I/O device display, while TF console users can select Quick Config for fast, easy setup. You can also combine the DZR12-D’s Analog I/O with Dante I/O, supplying you with flexible routing and system configuration. Or use the Dante break-In and break-Out function to act as a simple I/O box. Beyond that, Yamaha’s ProVisionare Control software for Windows and ProVisionare Touch for iPad are also Dante compatible, giving you added remote management of your system.

Features

Yamaha DZR12-D Powered Speaker Features:

  • 2-way powered loudspeaker with 2″ HF and 12″ LF drivers
  • Boasts a high-power 2,000-watt Class D amplifier and 39Hz–20kHz frequency range
  • Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
  • D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
  • FOH/Main and Monitor modes allow you to fine-tune your sound based on your application
  • DSP protection safeguards your power supply, power amplifiers, and transducers against damage
  • Optimized factory presets and intuitive LCD screen make operation easy
  • Great-sounding, custom-designed transducers
  • Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices
  • Rotatable horn allows vertical or horizontal mounting
  • 90° x 60° dispersion from a vertical position
  • Constant directivity horn supplies smooth, level coverage without roll-off
  • Universal switching-mode power supply offers maximum power, along with stable, worry-free operation
  • Lightweight yet durable plywood cabinet with a premium-grade polyurea coating

Specifications

  • Powered: Yes
  • Power Configuration: Bi-amped
  • Channels: 2
  • LF Driver Size: 12″ cone
  • HF Driver Size: 1″ throat compression driver
  • LF Driver Power Amp: 1000W Class D (peak)
  • HF Driver Power Amp: 1000W Class D (peak)
  • Total Power: 2000W Class D (peak)
  • Inputs: 2 x XLR-1/4″ combo
  • Outputs: 2 x XLR
  • USB: 1 x Type A
  • Other I/O: 2 x EtherCON (Dante)
  • Frequency Range: 39Hz-20khz (-10 dB)
  • Crossover Frequency: 1800 Hz
  • Maximum Peak SPL: 139 dB SPL @ 1m
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Signal Processing: EQ, Delay
  • Enclosure Material: Plywood
  • Mounting Options: Pole Mount with 1.37″ socket, Floor Wedge, 12 x M10 Fly Points
  • Power Source: Standard IEC AC cable
  • Height: 25.4″
  • Width: 16.1″
  • Depth: 15.5″
  • Weight: 47.2 lbs.
